UNIBASE - Trend UNIBASE - Router base adaptor. Allows other makes and models of router to use the Trend Guide Bushes for increased diversity.

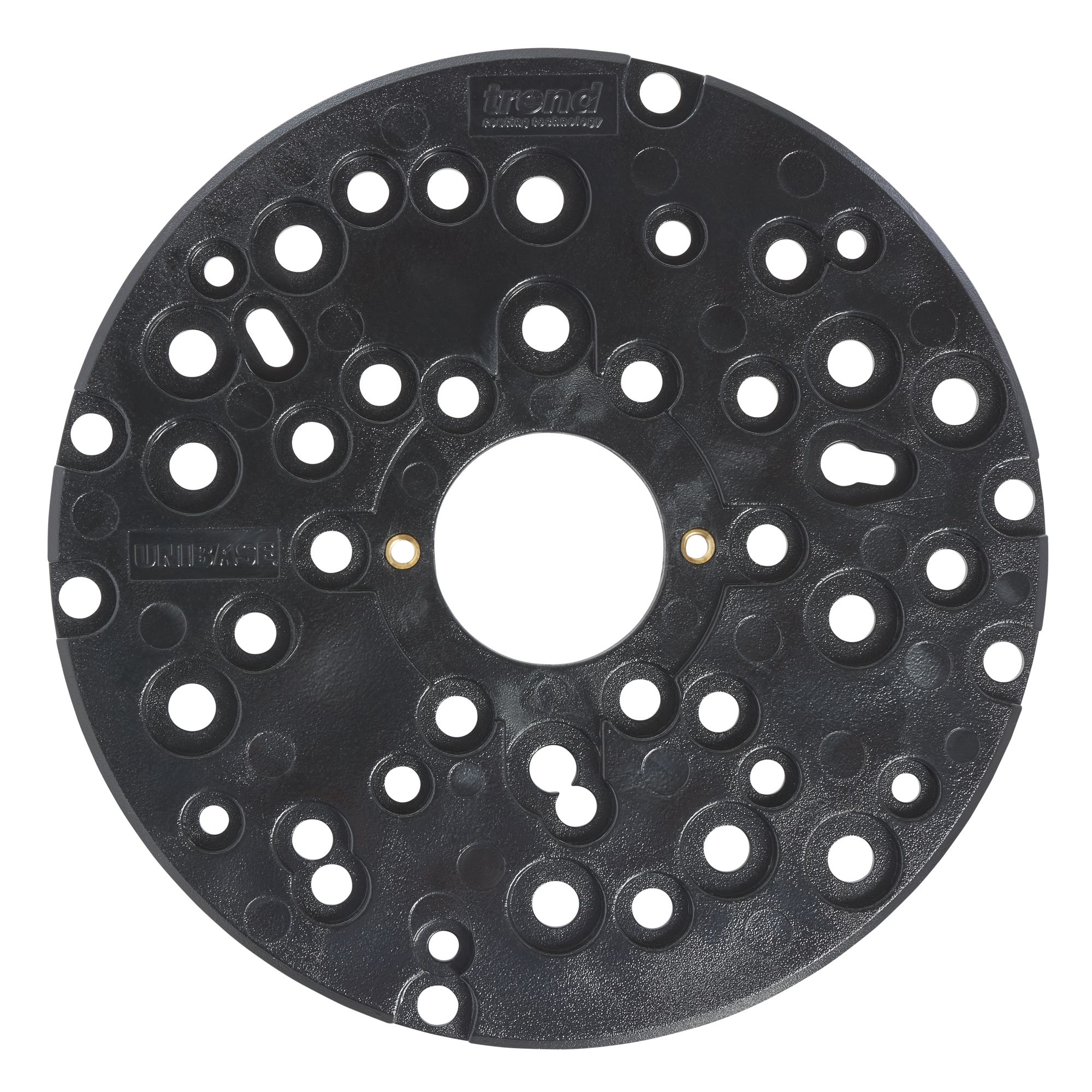

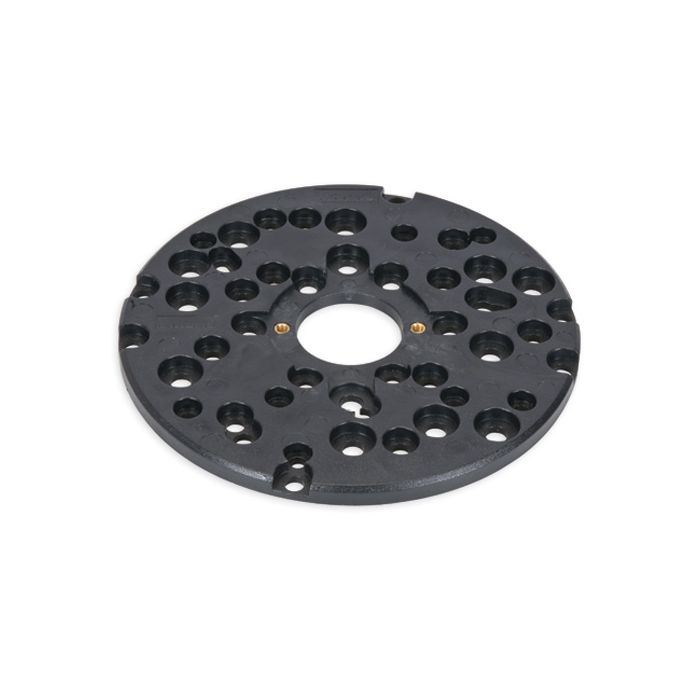

UNIBASE
The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.
- Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base.
- Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.
- Instructions for fitting
- The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 - GB32). For larger diameter cutters a 40mm guide bush (GB40) is available.
- Ideal for hinge jig and lock jig
- Diameter
- 170 mm
- Thickness
- 8 mm
- Bore
- 39 mm
- Recess
- 60 mm
- Screw thread
- 2BA
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
FIX/KIT/3 | For fitting routers to self-made router tables & accessories. |
£3.86 | ||
|
GB/01 | Pack of 10 guide bush screws. |
£3.92 | ||
|
UNI/GB16 | Replacement 16mm plastic line-up guide bush for the UNIBASE. |
£6.03 | ||
|
UNI/PIN/1 | Replacement line-up pin for the UNIBASE. |
£3.10 | ||
|
UNI/PIN/2 | Replacement line-up pin for the UNIBASE. |
£3.10 |
Videos
Trend Unibase Video
Trend Unibase - Perfect Router Cutter Alignment
Instructions
Product Questions
The Unibase is not compatible with the CMT7E use the GB/5/Q sub base instead.
The Unibase is compatible with the Bosch POF1400 but not the TRA001 use the GB/5/Q sub base instead.
In most cases you will need a Unibase adaptor plate ref UNIBASE which screws to the base of the router and will accept the guide bush that is included in the kit. To check if your machine is compatible, use the compatability chart in the catalogue.
The UNIBASE is required.
The UNIBASE is required.
The UNIBASE is required.
The thickness of the Trend Unibase is 8mm.
Please check our compatibility chart. A UNIBASE or sub-base may be required depending on the make and model.
