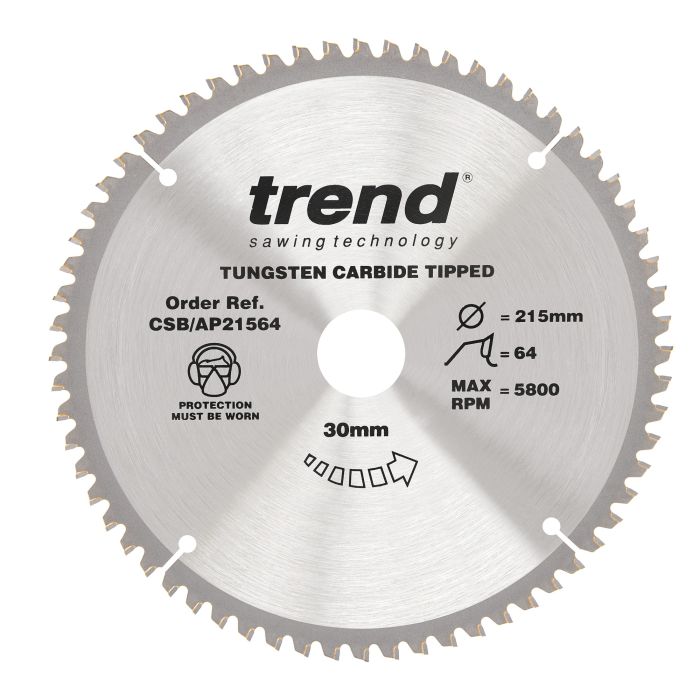

CSB/AP21564 - Trend Aluminium/Plastic Circular Saw Blade 215mm x 30mm x 64T
A range of tungsten carbide tipped saw blades for cutting Plastic, Aluminium, Copper and other non-ferrous metals and alloys. For use in circular, plunge, table and mitre saws, Trend Aluminium & Plastic blades deliver accurate, safe cutting performance. Ideal for window & door extrusions, facias & soffits, checker plate, sheet material.
- Triple chip ground (TCG) tooth form with -6° hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
- High tooth count reduces feed and cutting speed for a clean, controlled cut.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- NOTE: Requires a wax lubricant when cutting Aluminium, such as Trend TRENDIWAX.
Aluminum & Plastic TCT Sawblades
A variety of Tungsten Carbide Tipped sawblades, designed to cut plastic, aluminium, copper, brass and non-ferrous metals for use in circular, mitre and table saws. Ideal for window & door components, cladding, roofing trim, facias & soffits, and guttering.
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Triple Chip Ground Profile (TCG) with -6° Hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
- Triple Chip Ground Profile (TCG) with -6° hook eliminates self-feeding for a safe, clean, controlled, cutting action in aluminium, plastics and non-ferrous metals.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- High Tooth Count reduces feed and cutting speed for a clean, controlled cut.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- Requires a wax lubricant when cutting Aluminium, such as Trend TRENDIWAX.
Featured Products
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D
- 8 1/2 inches
- D
- 215 mm
- Bore
- 30 mm
- Kerf
- 2.8 mm
- Plate thick
- 1.9 mm
- No. of Teeth
- 64
- Tooth form
- TCP
- Hook
- Neg 6 degrees
- Quick Selector No.
- C18A
- Colour Code
- Grey
- Type
- Aluminium/Plastic/Worktop
- Cut Finish
- Extra fine
- Max rpm
- 8500
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
CSB/BW15B | Bushing washers supplied to reduce bore diameter for certain makes and models of saw.
|
£3.36 | ||
|
CSB/BW45B | Bushing washers supplied to reduce bore diameter for certain makes and models of saw.
|
£3.36 |
