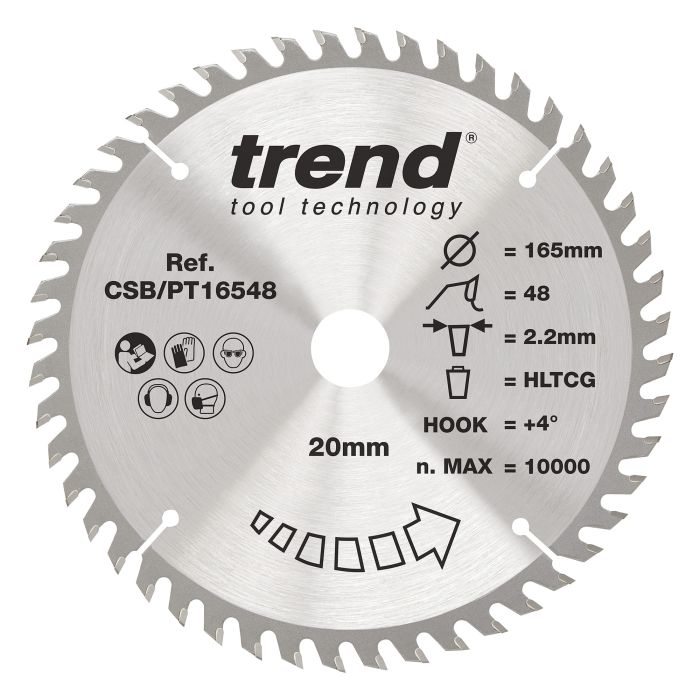

CSB/PT16548 - Trend Laminate/HPL Circular Saw Blade 165mm x 20mm x 48T
CSB/PT16548
A range of tungsten carbide tipped saw blades for cutting laminated and resin-based materials. For use in circular, plunge and table saws, Trend Laminate & HPL blades deliver precise, clean cuts. Ideal for laminated and veneered panels, laminated chipboard worktop and compact laminate.
- Triple chip ground (TCG) tooth form with +4° hook delivers an ultra-fine finish in hard materials.
- High tooth count reduces feed and cutting speed for a clean, controlled cut.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
Panel Trimming TCT Sawblades
A range of tungsten carbide tipped blades for wood and wood-based materials using circular and plunge saws. Positive hook, TCG profile and high tooth count delivers premium cut quality. Ideal for trimming sheet material such as furniture board, hardwood, plywood and chipboard laminate worktops.
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Triple Chip Ground (TCG) Profile with Positive Hook delivers an ultra-fine finish in hard materials.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Triple Chip Ground (TCG) Profile with Positive Hook delivers an ultra-fine finish in hard materials.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
Featured Products
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D
- 6 1/2 inches
- D
- 165 mm
- Bore
- 20 mm
- Kerf
- 2.2 mm
- Plate thick
- 1.6 mm
- No. of Teeth
- 48
- Tooth form
- TCP
- Hook
- 4 degrees
- Quick Selector No.
- 8B.1
- Colour Code
- Purple
- Type
- Panel Trimming
- Cut Finish
- Super fine
Dewalt DWS520K
- Max rpm
- 10000
DeWalt DWS520, Makita SP6000, Bosch GKT 55 GC, Triton TTS1400, Draper PS1200D, Titan TTB673CSW, Parkside PTSS 1200 B1, Macallister LT63006S, Macallister MSPS1200
