DGP/IP/CF - DG/PRO Inner Plate Curved Fan
DGP/IP/CF

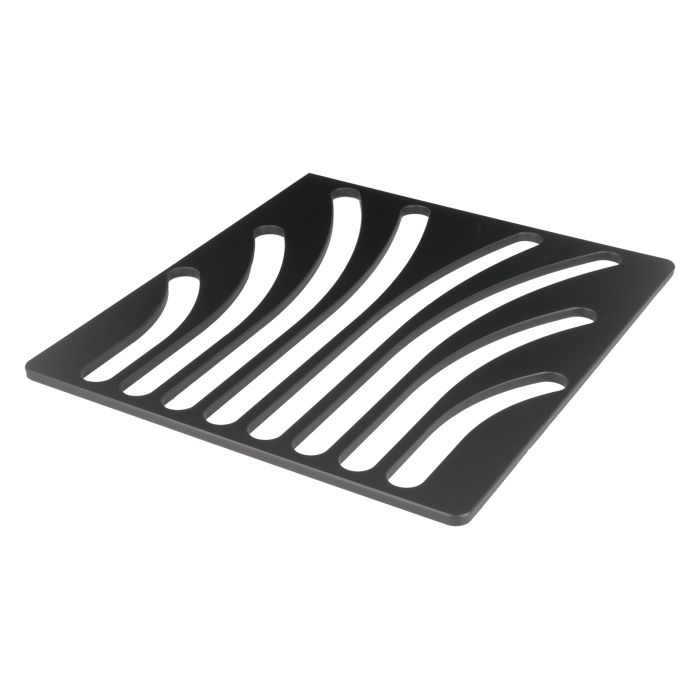

Accessory inner plate template for use with the Drainer Groove Pro jig to create curved fan drainer grooves in solid timber and solid surface worktops.
- Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate.
- Requires suitable plunge router with 30mm guide bush and R9.5mm cove cutter with long shank.
- Must be used with the DG/PRO jig frame to maintain 0.5 degree fall.
- Pitch
- 45 mm to 75 mm
- Groove length
- 438 mm
- Guide bush
- 30 mm
- Plunge router
- 1/2-inch
- Cutter
- Cove R9.5 mm
- Length
- 500 mm
- Width
- 500 mm
- Thickness
- 12 mm
no spare products
Videos
Drainer Groove Pro Jig Video
See how the innovative features we've designed into the Drainer Groove Pro Jig, will help save you time and deliver perfect results with every cut.
